Fortinet FortiWAN 3000B
WAN Link Load Balancing

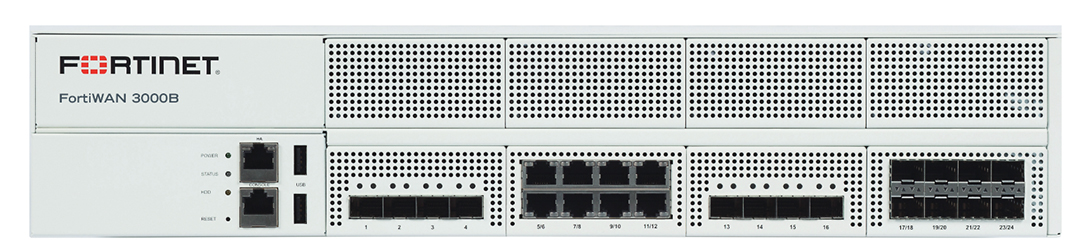

FortiWAN-3000B

Sorry, this product is no longer available. Please Contact Us for a replacement.



Click here to jump to more pricing!

Overview:

Fortinet’s FortiWAN intelligently balances Internet and intranet traffic across multiple WAN connections, providing additional low-cost incoming and outgoing bandwidth for the enterprise and substantially increased connection reliability. FortiWAN is supported by a userfriendly UI and a flexible policy-based performance management system. It provides a unique solution that offers comprehensive multi-WAN management that keeps costs down as well as keeping customers and users connected.

Increase Network Performance

FortiWAN intelligently aggregates multiple broadband and/or leased access lines to significantly increase Internet access performance. FortiWAN load balances Internet service requests, optimally distributing traffic across all available access links. Seven different load balancing algorithms provide the flexibility to maximize productivity from any network scenario.

Inbound Access Load Balancing

FortiWAN also load balances service requests from Internet users accessing Enterprise-hosted web, email or VPN servers. Multiple links, media and ISPs can be utilized without complex interfaces or programming with your service providers. Bandwidth can be added and removed quickly and easily.

Site-to-Site WAN Connectivity

FortiWAN gives you high-performance inter-site connectivity without the need to lease expensive links such as T1 and T3. FortiWAN aggregates multiple low-cost Internet access links to create site-to-site Virtual Private Line (VPL) tunnels of up to 1 Gbps for LAN-like performance between company locations. By using multiple carriers and media, reliability of these VPL tunnels can exceed that of traditional engineered carrier links.

Highlights

  • Increase Internet bandwidth
  • Increase site-to-site bandwidth
  • Improve reliability/availability
  • Reduce bandwidth costs
  • Outbound Link Load Balancing to fine-tune traffic across up to 50 links
  • Optimum routing to prioritize traffic for mission-critical applications
  • Automatic failback or failover of WAN links to ensure continuity of traffic flows
  • Multi-homing (inbound Link Load Balancing) to improve response times and availability for incoming requests
  • Virtual servers for simple server load balancing and high availability
  • GE fiber connectivity to Carrier and LAN services
  • Comprehensive usage and quality reporting

Tunnel Routing — Virtual Private Line Services

Inter-site tunnels can be created from fractional, full, multiple and fractions of multiple WAN links. Applications requiring large single-session bandwidth such as video conferencing or WAN optimization can use multiple links to build the bandwidth needed. Multi-session traffic can share an appropriately-sized tunnel. Tunnels have the same functionality as single links, supporting load balancing, fallback, failover and health detection within and between tunnels.

Features:


Load Balancing Algorithms

  • Fixed
  • Weighted Round-Robin
  • Application
  • Connections
  • Traffic
  • FQDN
  • Optimum Route
  • Full IPv6 Supoort of all WAN types

Multi-Homing

  • WAN Load Balancing and Fault Tolerance
  • Multiple Domains
  • DNS Relay
  • Full IPv6 Support of all WAN types
  • IPv4/IPv6 Authoritative DNS / DNSSEC

Bandwidth Management

  • Maximum and minimum bandwidth
  • Priority
  • Source/Destination IP and Application
  • Schedule

Flexible Licensing

  • Stackable bandwidth options
  • Increase throughput as needed
  • Please see product specifications for maximum bandwidth supported on each appliance

Tunnel Routing

  • VPN Load Balancing/Failover
  • AES Encryption
  • Dynamic IP Support
  • NAT Pass-Through
  • Peer Routing Exchange
  • Tunnel DSCP QoS for MPLS Links
  • Aggregate Multiple Internet Links into Virtual Private Lines

Other Features

  • Server High Availability
  • L4 Server Load Balancing
  • Built-in Authoritative Public and Private DNS
  • NAT Mode / Routing Mode
  • RIP V1/2 and OSPF
  • PPPoE / DHCP WAN-Type Support
  • Multiple Public IP Pass-Through
  • IEEE 802.1q VLAN
  • Redundant Power Supply on most models
  • Automated Failover, N:N-1 Redundancy, On-Demand Line Backup
  • HA (High Availability)
  • IPv4/IPv6 DHCP for each subnet

Management

  • Web Admin (SSL)
  • Console (RJ45, RS232 or SSH via network)
  • SNMP

Specifications:


  FortiWAN 200B FortiWAN 1000B FortiWAN 3000B
Hardware Specifications
WAN Bandwidth 200–600 Mbps* 1–2 Gbps* 3–9 Gbps*
WAN Links up to 25** up to 50** up to 50**
Network Interfaces 5x GE Cu 4x SFP, 3x GE Cu 8x 10 GE SFP+, 8x GE SFP, 8x GE Cu
Storage 500 GB HDD 1 TB HDD 1 TB HDD
HA Ports 1 1 1
Power Supply Single Dual Dual
System Specifications
Concurrent Connections 800,000 2,000,000 6,000,000
Connections per Second 42,000 180,000 550,000
Multi-Homing A/AAAA Records 200 400 800
Management any network port any network port any network port
Dimensions
Form Factor 1U 1U 2U
Height x Width x Length (inches) 1.75 x 17.32 x 10.55 1.75 x 17.32 x 16.22 3.46 x17.32 x 23.66
Height x Width x Length (mm) 44 x 440 x 268 44 x 440 x 412 88 x 440 x 601
Weight 9.9 lbs  (4.5 kg) 17.9 lbs  (8.1 kg) 36.2 lbs  (16.4 kg)
Environment
Input Voltage 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz
Typical Power Consumption 40 W 135 W 450 W
Maximum Current 110V/0.37A, 220V/0.22A 110V/5A, 220V/3A 110V/9A, 220V/4A
Heat Dissipation 110V/138 BTU/h, 220V/163 BTU/h 110V/508 BTU/h, 220V/699 BTU/h 110V/1843 BTU/h, 220V/2177 BTU/h
Operating Temperature 32–104°F  (0–40°C) 32–104°F  (0–40°C) 32–104°F  (0–40°C)
Storage Temperature -4–167°F  (-20–75°C) -4–167°F  (-20–75°C) -4–167°F  (-20–75°C)
Humidity 10–85% non-operating, non-condensing 10–85% non-operating, non-condensing 10–85% non-operating, non-condensing
Compliance
  FCC, CE, RCM, VCCI, BSMI, UL, CB. FCC, CE, RCM, VCCI, BSMI, UL, CB. FCC, CE, RCM, VCCI, BSMI, UL, CB.
* Throughputs based on license(s) selected.
**Additional links beyond the physical hardware ports on the appliances are supported through external VLAN switches.
