Fortinet FortiGate 5144C
Scalable Data Center and Carrier-Graded Security Systems
Sorry, this product is no longer available. Please Contact Us for a replacement.
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
With so many enterprise initiatives around big data, public cloud and Internet of things, security infrastructure providers must deliver even more performance, reliability and scalability to their customers. Fortinet's 5000-series chassis-based scalable platforms offer groundbreaking throughput and proven resilience to satisfy the most demanding carrier and enterprise datacenter requirements.
Consolidated Security Solutions
The FortiGate 5000-series bundles integrate modular carrier class hardware components with advanced FortiASIC™ acceleration and consolidated security from the FortiOS™ operating system to deliver up to 1 Tbps throughput. And with our in-house FortiGuard research team delivers dynamic, automated updates and ensures up-to-date protection against sophisticated threats. In addition, the 5000 series supports a web-based GUI, 'single pane of glass' management console and on-board reporting for deep visibility.
Highly Scalable, Flexible and Unmatched Performance
- Ideal for high-speed service provider, large enterprises or telecommunications carrier network.
- Security blades that are powered by FortiASICs that provide superior security functionality and high performance
- Modular design allows predictable growth.
- Highly available with Virtual Domain (VDOM) support for multi-tenant data center environment.
- Integrated high-speed 40 GE or 100 GE port delivers maximum flexibility and scalability.
Chassis:

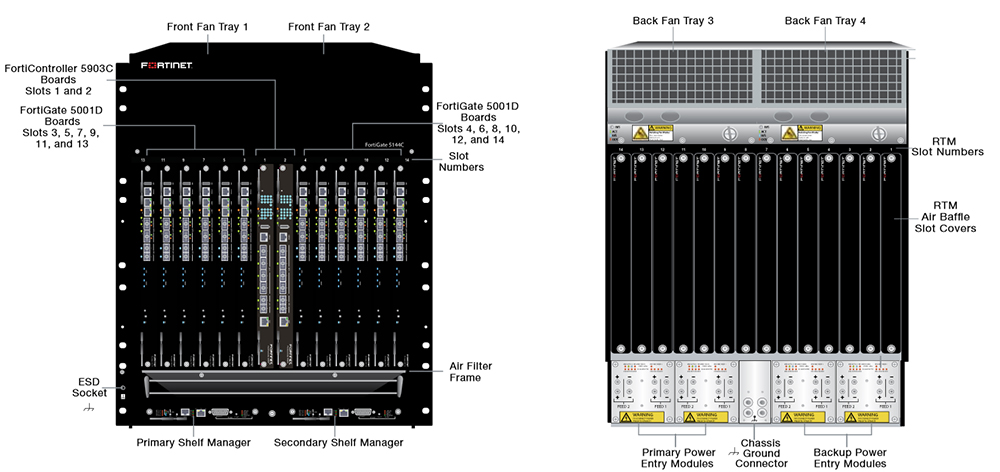

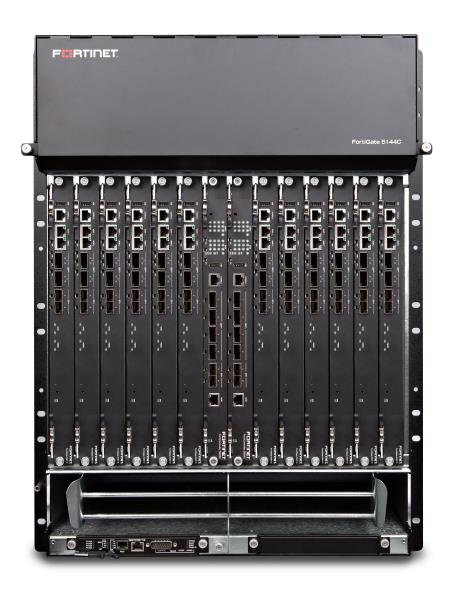

FortiGate 5144C
Next Generation 14U 19-inch rack mount ATCA chassis with 40 Gbps Backplane and capable of Dual-Dual-Star topology.
It can install up to 14 FortiGate 5000-series blades.
Security Blade:

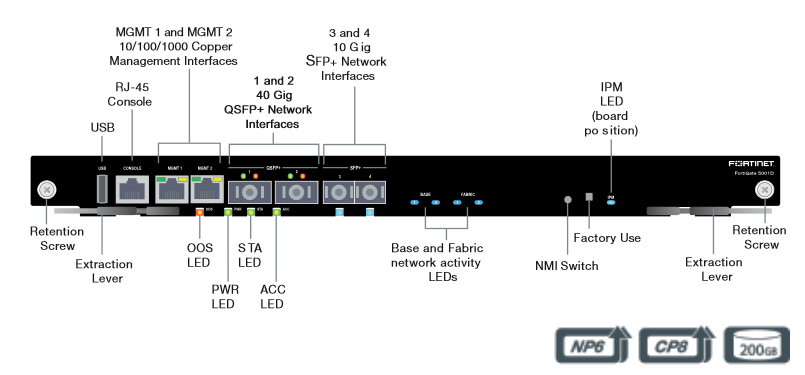

FortiGate 5001D
Latest purpose-built FortiGate security blade with carrier-class
capacity and protection. Runs on FortiOS 5 - the most powerful
security operating system in the world.
Networking Blade:

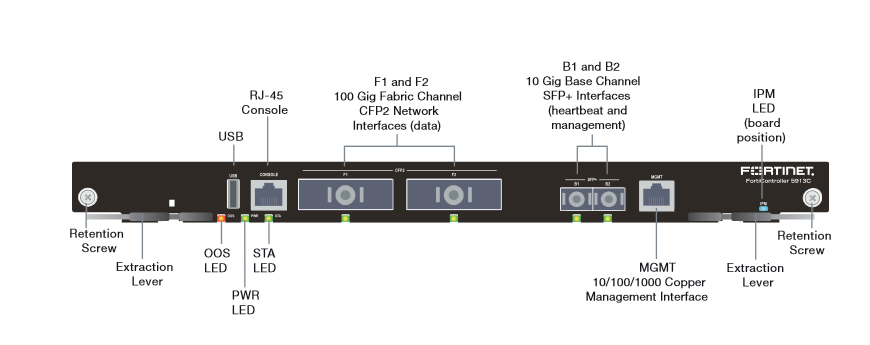

FortiController 5913C
High performance, FortiASIC DP2 accelerated networking blade
with 100 GE interfaces and 10/40-gigabit fabric and 1-gigabit base
backplane channel.
Specifications:
FortiGate 5144C | |
---|---|
Hardware Specifications | |
Available Slots | 14 |
High Availability Backplane Fabric | Built-in |
40 Gbps Backplane Support | Yes |
Shelf Manager (Default / Maximum) | 1 / 2 |
Dual Networking Blade Support | Yes |
Dimensions | |
Height x Width x Length (inches) | 24.44 x 19.06 x 21.63 |
Height x Width x Length (cm) | 62.1 x 48.4 x 55.0 |
Weight | 108 lb (50 kg) |
Maximum Capacity** | |
Firewall Throughput | 1.12 Tbps |
Power and Environment | |
Power Required | DC/AC1 |
Chassis Only Power Consumption (Maximum) *** | 960 W |
Heat Dissipation (Maximum) *** | 3,276 BTU/h |
Operating Temperature | 32-104°F (0-40°C) |
Storage Temperature | -13-158°F (-35-70°C) |
Humidity | 5-90% non-condensing |
Compliance | |
Certifications | FCC Part 15 Class A, C-Tick, VCCI, CE, BSMI, UL/cUL |
1 Optional FortiGate 5053B Power Supply Shelf used to provide AC power to the FortiGate
** Based on fully populated FortiGate 5001D
*** Please refer to respective Chassis Guide for computation of total power requirement.
FortiGate 5001D | |
---|---|
Interfaces and Storage | |
40 GE QSFP+ Ports | 2 |
10 GE SFP+ Ports | 2 |
GE RJ45 Ports | 2 |
RJ45 Console Port | 1 |
Included Transceivers | 2x 10 GE SFP+ SR |
Local Storage | 200 GB |
Syetem Performance | |
Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 80 / 80 / 45 Gbps |
Firewall Latency (64 byte UDP packets) | 3 μs |
Firewall Throughput (Packets Per Second) | 67.5 Mbpps |
Concurrent Sessions (TCP) | 23 Mil |
New Sessions/Sec (TCP) | 565,000 |
Maximum Firewall Policies | 100,000 |
IPsec VPN Throughput (512 byte packets) | 25 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 40,000 |
Client-to-Gateway IPsec VPN Tunnels | 64,000 |
SSL-VPN Throughput | 6.5 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum) | 25,000 |
IPS Throughput | 18 Gbps |
Antivirus Throughput (Proxy Based / Flow Based) | 5.6 / 13 Gbps |
Virtual Domains (Default / Maximum) | 10 / 500 |
Maximum Number of FortiTokens | 5,000 | Maximum Number of Registered FortiClients | 20,000 |
Maximum Number of FortiAPs | 1,024 |
Power and Environment | |
Power Consumption (Average / Maximum) | 189 / 226 W |
Heat Dissipation (Average) | 774 BTU/h |
Operating Temperature | 32-104°F (0-40°C) |
Storage Temperature | -13-158°F (-25-70°C) |
Humidity | 20-90% non-condensing |
Compliance | |
Certifications | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB, ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
NEBS Certified | - |
* Operating in Standalone Mode
Note: All performance values are "up to" and vary depending on system configuration. Antivirus performance is measured using 44 Kbyte HTTP files. IPS performance is measured using 1 Mbyte HTTP files.
FortiController 5913C | ||
---|---|---|
Interfaces | ||
Fabric Channel Interfaces | 2x 100 GE CFP2 | |
Base Channel Interfaces | 2x 10 GE SFP+ | |
Management Interfaces | 1x GE RJ45 | |
Included Transceivers | 2x 10 GE SFP+ SR | |
40 GE Backplane Fabric Support | Yes | |
10 GE Backplane Fabric Support | Yes | |
GE Backplane Fabric Support | - | |
System Performance | ||
Maximum Traffic Throughput | 200 Gbps | |
Maximum Concurrent Sessions | 135 Million | |
New Sessions/Second (TCP) | 3.6 Million | |
Power and Environment | ||
Power Consumption (Average / Maximum) | 280 / 400 W | |
Heat Dissipation | 955 BTU/h | |
Operating Temperature | 32-104°F (0-40°C) | |
Storage Temperature | -13-158°F (-35-70°C) | |
Humidity | 5-90% non-condensing | |
Compliance | ||
Certifications | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
Documentation:
Download the Fortinet FortiGate-5000 Series Bundle Datasheet (.PDF)
Pricing Notes:
- All Prices are Inclusive of GST
- Hardware plus FortiCare Premium and FortiGuard Enterprise Protection
Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service) plus term of contract - Hardware plus FortiCare Premium and FortiGuard SMB Protection
Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering , Antispam and FortiGate Cloud subscription service) plus term of contract - Hardware plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP)
Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service) plus term of contract - Enterprise Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service) - SMB Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, plus FortiGate Cloud subscription and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam and FortiGate Cloud subscription service) - Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service, and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service) - Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Advanced Threat Protection Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct Service, Application Control) - FortiCare Essential Support
FortiCare Essential Ticket Handling, Hardware Replacement, Firmware and General Upgrades, Application Control - FortiCare Premium Support
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control - FortiCare Elite Support
FortiCare Premium Support with FortiCare Elite Ticket Handling. - Prices are for one year of Premium RMA support. Usual discounts can be applied.
- Annual contracts only. No multi-year SKUs are available for these services.
- Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
- Pricing and product availability subject to change without notice.
14U 14-slot chassis with 40G Dual Dual Star fabric backplane, 4 PEMs, 4 Fan units, 2 Shelf FRU Data Modules, 1 Shelf Manager, Front and RTM air baffles, and 4 pairs DC Cables for connecting to FG-5053B Power Shelves
Our Price: Request a Quote
5144C Shelf Manager with ShMM-700R Mezzanine Card and Radial IPMB Bus for FG-5144C-DC chassis
Our Price: Request a Quote
FG-5144C Fan Tray Front
Our Price: Request a Quote
5000 Front Slot Blank Panel with Air Baffle (Aluminum/Plastic)
Our Price: Request a Quote
5000 RTM Slot Blank Panel with Air Baffle (Aluminum/Plastic)
Our Price: Request a Quote
FG-5144C Shelf FRU Data module
Our Price: Request a Quote
FG-5144C Power Entry Module (PEM)
Our Price: Request a Quote
14U 14-slot chassis with 40G Dual Dual Star fabric backplane and Radial IPMB buses, 4 PEMs, 4 Fan Units, 2 Shelf FRU Data Modules, 1 Shelf Manager, 13 Front and 14 RTM air baffles, and 4 36" DC Cables for connection to FG-5053B Power Shelf CO14G4-B-DDA-UF4-SR1-PH4-F2-A
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
