Fortinet FortiSandbox 1000F-DC
Consolidated Security for Virtual Environments

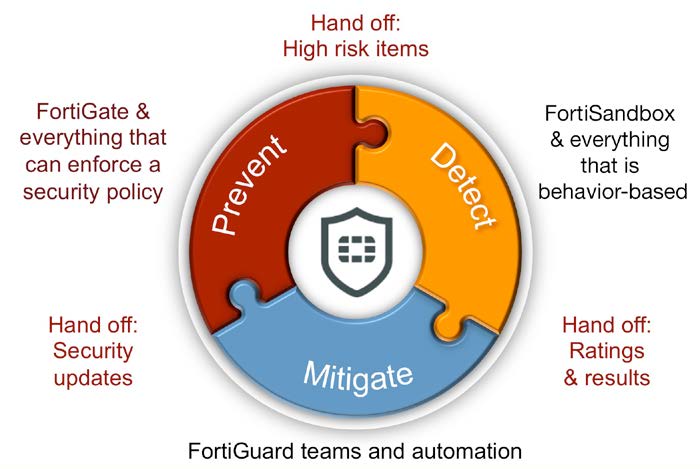

Advanced Threat Protection Framework:

The most effective defense against advanced targeted attacks is founded on a cohesive and extensible protection framework. The Fortinet framework uses security intelligence across an integrated solution of traditional and advanced security tools for network, application and endpoint security, and threat detection to deliver actionable, continuously improving protection.

Fortinet integrates the intelligence of FortiGuard Labs into FortiGate next generation firewalls, FortiMail secure email gateways, FortClient endpoint security, FortiSandbox advanced threat detection, and other security products to continually optimize and improve the level of security delivered to organizations with a Fortinet solution.

Prevent Attacks

Fortinet next generation firewalls, secure email gateways, web application firewalls, endpoint security and similar solutions use security such as antivirus, web filtering, IPS, and other traditional security techniques to quickly and efficiently prevent known threats from impacting an organization.

Detect and Analyze Threats

FortiSandbox and other advanced detection techniques step in to detect “Zero-day” threats and sophisticated attacks, delivering risk ratings and attack details necessary for remediation.

Mitigate Impact and Improve Protection

In a Fortinet solution, detection findings can be used to trigger prevention actions to ensure the safety of resources and data until remediation is in place. Finally, the entire security ecosystem updates to mitigate any impact from future attacks through the strong, integrated threat intelligence research and services of FortiGuard Labs.

Features:

Sandbox Malware Analysis

Complement your established defenses with a two-step sandboxing approach. Suspicious and at-risk files are subjected to the first stage of analysis with Fortinet’s awardwinning AV engine, FortiGuard global intelligence query*, and code emulation. Second stage analysis is done in a contained environment to uncover the full attack lifecycle using system activity and callback detection. Figure 1 depicts new threats discovered in real time.

In addition to supporting FortiGate, FortiMail, FortiWeb, FortiADC, FortiProxy, FortiClient (ATP agent) and Fabric-Ready Partner submission, third-party security vendor offerings are supported through a well-defined open API set.

Reporting and Investigative Tools

Reports with captured packets, original file, tracer log, and screenshot provide rich threat intelligence and actionable insight after files are examined. This is to speed up remediation.

Threat Mitigation

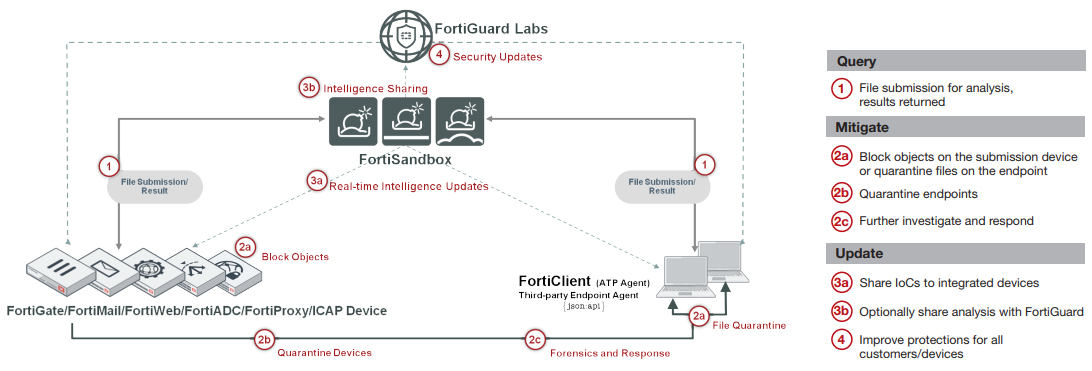

Fortinet’s ability to uniquely integrate various products with FortiSandbox through the Security Fabric offers automatic protection with incredibly simple setup. Once a malicious code is identified, the FortiSandbox will return risk ratings and the local intelligence is shared in real time with Fortinet and third-party vendor-registered devices and clients to remediate and immunize against new advanced threats. The local intelligence can optionally be shared with Fortinet threat research team, FortiGuard Labs, to help protect organizations globally. Figure 3 steps through the flow on the automated mitigation process.

Features Summary

Administration

• Supports WebUI and CLI configurations
• Multiple administrator account creation
• Configuration file backup and restore
• Notification email when malicious file is detected
• Weekly report to global email list and FortiGate administrators
• Centralized search page which allows administrators to build customized search conditions
• Frequent signature auto-updates
• Automatic check and download new VM images
• VM status monitoring
• Radius Authentication for administrators

Networking/Deployment

• Static Routing Support
• File Input: Offline/sniffer mode, On-demand file upload, file submission from integrated device(s)
• Option to create simulated network for scanned file to access in a closed network environment
• High-Availability Clustering support
• Port monitoring for fail-over in a cluster

Systems Integration

• File Submission input: FortiGate, FortiMail, FortiWeb, FortiADC, FortiProxy and FortiClient (ATP agent)
• File Status Feedback and Report: FortiGate, FortiMail, FortiWeb, FortiADC, FortiProxy and FortiClient (ATP agent)
• Dynamic Threat DB update: FortiGate, FortiMail, FortiWeb, FortiADC, FortiProxy and FortiClient (ATP agent)
  • Periodically push dynamic DB to registered entities.
  • File checksum and malicious URL DB
• Update Database proxy: FortiManager
• Remote Logging: FortiAnalyzer, syslog server
• JSON API to automate the process of uploading samples and downloading actionable malware indicators to remediate
• Certified third-party integration: CarbonBlack, Ziften
• Inter-sharing of IOCs between FortiSandboxes

Advanced Threat Protection

• Inspection of new threats including ransomware and password protected malware mitigation
• Static Code analysis identifying possible threats within non-running code
• Heuristic/Pattern/Reputation-based analysis
• Virtual OS Sandbox:
  • Concurrent instances
  • OS type supported: Windows XP*, Windows 7, Windows 8.1, Windows 10, macOS, and Android
  • Anti-evasion techniques: sleep calls, process and registry queries
  • Callback Detection: malicious URL visit, Botnet C&C communication and attacker traffic from activated malware
  • Download Capture packets, Original File, Tracer log and Screenshot
  • Sandbox Interactive Mode
• File type support: .7z, .ace, .apk, .app, .arj, .bat, .bz2, .cab, .cmd, .dll, .dmg, .doc, .docm, .docx, .dot, .dotm, .dotx, .exe, .gz, .htm, html, .jar, .js, .kgb, .lnk, .lzh, Mach-O, .msi, .pdf, .pot, .potm, .potx, .ppam, .pps, .ppsm, .ppsx, .ppt, .pptm, .pptx, .ps1, .rar, .rtf, .sldm, .sldx, .swf, .tar, .tgz, .upx, url, .vbs, WEBLink, .wsf, .xlam, .xls, .xlsb, .xlsm, .xlsx, .xlt, .xltm, .xltx, .xz, .z, .zip
• Protocols/applications supported:
  • Sniffer mode: HTTP, FTP, POP3, IMAP, SMTP, SMB
  • Integrated mode with FortiGate: HTTP, SMTP, POP3, IMAP, MAPI, FTP, IM and their equivalent SSL encrypted versions
  • Integrated mode with FortiMail: SMTP, POP3, IMAP
  • Integrated mode with FortiWeb: HTTP
  • Integrated mode with ICAP Client: HTTP
• Customize VMs with support file types
• Isolate VM image traffic from system traffic
• Network threat detection in Sniffer Mode: Identify Botnet activities and network attacks, malicious URL visit
• Scan SMB/NFS network share and quarantine suspicious files. Scan can be scheduled
• Scan embedded URLs inside document files
• Integrate option for third partyYara rules
• Option to auto-submit suspicious files to cloud service for manual analysis and signature creation
• Option to forward files to a network share for further third-party scanning
• Files checksum whitelist and blacklist option
• URLs submission for scan and query from emails and files

Monitoring and Report

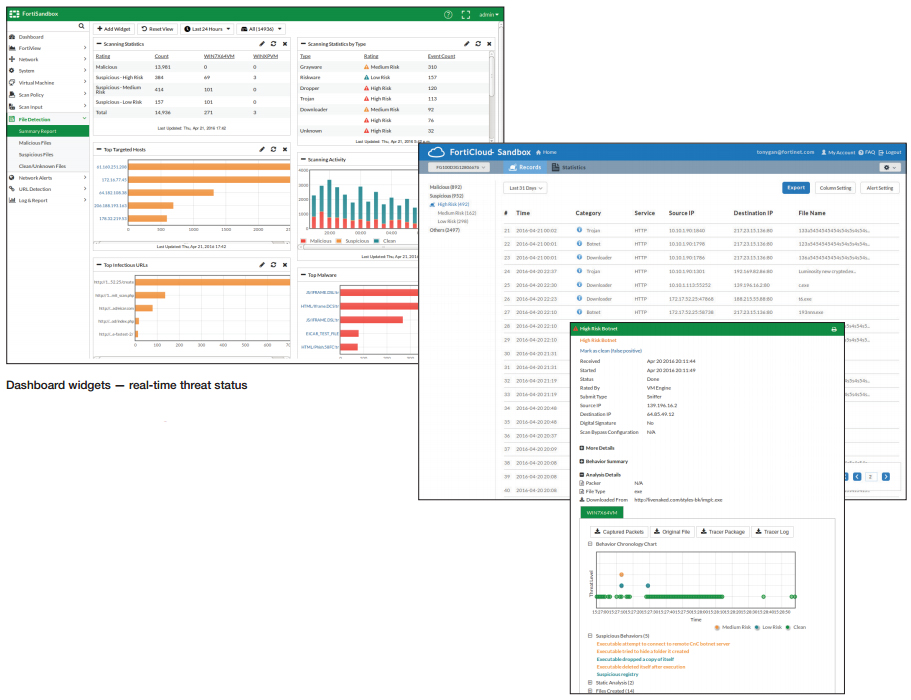

• Real-Time Monitoring Widgets (viewable by source and time period options): Scanning result statistics, scanning activities (over time), top targeted hosts, top malware, top infectious urls, top callback domains
• Drilldown Event Viewer: Dynamic table with content of actions, malware name, rating, type, source, destination, detection time and download path
• Logging — GUI, download RAW log file
• Report generation for malicious files: Detailed reports on file characteristics and behaviors – file modification, process behaviors, registry behaviors, network behaviors, vm snapshot, behavior chronology chart
• Further Analysis: Downloadable files — sample file, sandbox tracer logs, PCAP capture and indicators in STIX format

* a real time IoC check for emerging threats (known good and bad) within the FortiGuard intelligence community

Deployment:

Easy Deployment

FortiSandbox supports inspection of many protocols in one unified solution, thus simplifies network infrastructure and operations. Further, it integrates within the Security Fabric adding a layer of advanced threat protection to your existing security architecture.

The FortiSandbox is the most flexible threat analysis appliance in the market as it offers various deployment options for customers’ unique configurations and requirements. Organizations can choose to combine these deployment options.

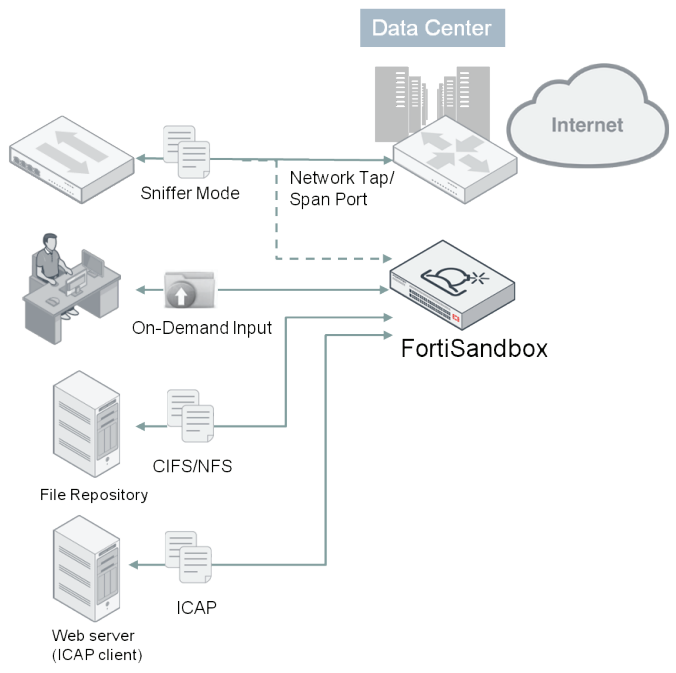

Standalone

This FortiSandbox deployment mode accepts inputs as an ICAP server or from spanned switch ports or network taps. It may also include administrators’ on-demand file uploads or scanning of file respositories via CIFs or NFS through the GUI. It is the ideal option to enhancing an existing multi-vendor threat protection approach.

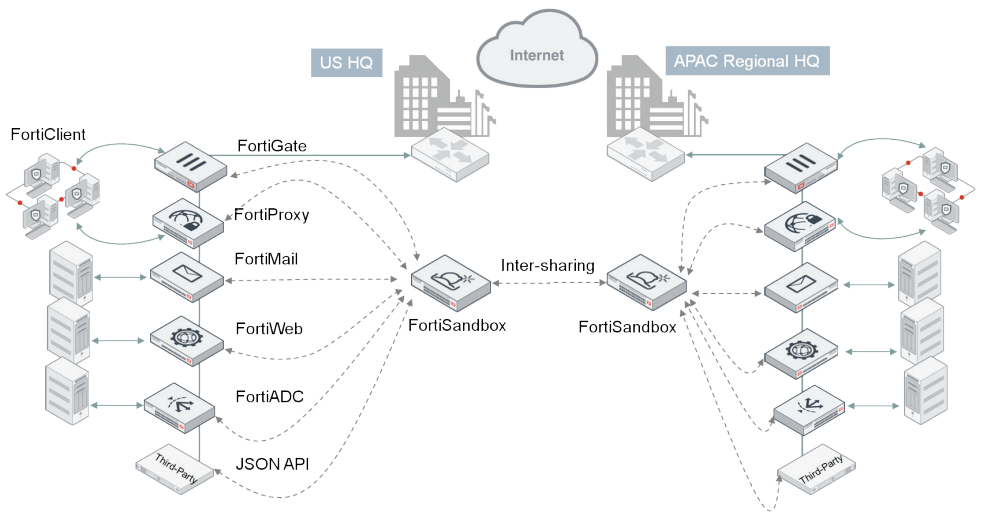

Integrated

Fortinet products, such as FortiGate, FortiMail, FortiWeb, FortiADC, FortiProxy and FortiClient (ATP agent) and third-party security vendors can intercept and submit suspicious content to FortiSandbox when they are configured to interact with FortiSandbox. The integration will also provide timely remediation and reporting capabilities to those devices.

This integration extends to other FortiSandboxes to allow instantaneous sharing of real-time intelligence. This benefits large enterprises that deploy multiple FortiSandboxes in different geo-locations. This zero-touch automated model is ideal for holistic Figure 4: Standalone Deployment protection across different borders and time zones.

Specifications:

	FSA-500F	FSA-1000F/-DC	FSA-2000E	FSA-3000E
Hardware
Form Factor	1 RU	1 RU	2 RU	2 RU
Total Network Interfaces	4x GE RJ45 ports	4x GE RJ45 ports, 4x GE SFP slots	4x GE RJ45 ports, 2x 10 GE SFP+ slots	4x GE RJ45 ports, 2x 10 GE SFP+ slots
Storage Capacity	1x 1 TB	2x 1 TB	2x 2 TB	4x 2 TB
Power Supplies	1x PSU	1x PSU, Optional 2x PSU	2x Redundant PSU	2x Redundant PSU
System Performance
Number of VMs	6*	14*	24*	56*
Sandbox Pre-Filter Throughput (Files/Hour)1	4,500	7,500	12,000	15,000
VM Sandboxing Throughput (Files/Hour)	120	280	480	1,120
Real-world Effective Throughput (Files/Hour)	6002 3603	1,4002 8403	2,4002 1,4403	5,6002 3,3603
Sniffer Throughput	500 Mbps	1 Gbps	4 Gbps	8 Gbps
Dimensions
Height x Width x Length (inches)	1.73 x 17.24 x 12.63	1.73 x 17.24 x 22.83	3.46 x 17.24 x 20.87	3.5 x 17.2 x 25.5
Height x Width x Length (mm)	44 x 438 x 320	44 x 438 x 580	88 x 438 x 530	89 x 437 x 647
Weight	18.72 lbs (8.5 kg)	25 lbs (11.34 kg)	27 lbs (12.25 kg)	43 lbs (19.52 kg)
Environment
Power Consumption (Average / Maximum)	30.1 / 76.3 W	66.93 / 116.58 W	164.7 / 175.9 W	538.6 / 549.6 W
Maximum Current	100/8A, 240V/4A	100V/5A, 240V/3A	100V/8A, 240V/4A	100–240V / 9.8–5A
Heat Dissipation	260.34 BTU/h	397.75 BTU/h	600.17 BTU/h	1,943.82 BTU/h
Power Source	100–240V AC, 60–50 Hz	100–240V AC, 60–50 Hz	100–240V AC, 60–50 Hz	100–240V AC, 60–50 Hz
Humidity	5–90% non-condensing	5–90% non-condensing	5–90% non-condensing	8–90% (non-condensing)
Operation Temperature Range	32–104°F (0–40°C)	32–104°F (0–40°C)	32–104°F (0–40°C)	50–95°F (10– 35°C
Storage Temperature Range	-4–158°F (-20–70°C)	-40–158°F (-40–70°C)	-4–158°F (-20–70°C)	-40 –158°F (-40–70°C
Compliance
Certifications	FCC Part 15 Class A, C-Tick, VCCI, CE, BSMI, KC, UL/cUL, CB, GOST

¹ FortiSandbox pre-filtering is powered by FortiGuard Intelligence.
² Measured based on real-world web and email traffic when both pre-filter and dynamic analysis are working consecutively.
³ Measured based on real-world email traffic when both pre-filter and dynamic analysis are working consecutively.
* 2(FSA-500F)/2(FSA-1000F)/4(FSA-2000E)/8(FSA-3000E) Windows VM licenses included with hardware, remaining are sold as an upgrade license.

		FortiGate	FortiClient	FortiMail	FortiWeb	FortiADC	FortiProxy
FSA Appliance and VM	File Submission	*FortiOS V5.0.4+	FortiClient for Windows OS V5.4+	FortiMail OS V5.1+	FortiWeb OS V5.4+	FortiADC OS V5.0+	FortiProxy OS V1.0+
	File Status Feedback	*FortiOS V5.0.4+	FortiClient for Windows OS V5.4+	FortiMail OS V5.1+	FortiWeb OS V5.4+	FortiADC OS V5.0+	FortiProxy OS V1.0+
	File Detailed Report	*FortiOS V5.4+	FortiClient for Windows OS V5.4+	FortiMail OS V5.1+	–	FortiADC OS V5.0+	FortiProxy OS V1.0+
	Dynamic Threat DB Update	*FortiOS V5.4+	FortiClient for Windows OS V5.4+	FortiMail OS V5.3+	FortiWeb OS V5.4+	FortiADC OS V5.0+	FortiProxy OS V1.0+
FortiSandbox Cloud	File Submission	*FortiOS V5.2.3+	–	FortiMail OS V5.3+	FortiWeb OS 5.5.3+	–	FortiProxy OS V1.0+
	File Status Feedback	*FortiOS V5.2.3+	–	FortiMail OS V5.3+	FortiWeb OS 5.5.3+	–	FortiProxy OS V1.0+
	File Detailed Report	*FortiOS V5.2.3+	–	–	–	–	FortiProxy OS V1.0+
	Dynamic Threat DB Update	*FortiOS V5.4+	–	FortiMail OS V5.3+	FortiWeb OS 5.5.3+	–	FortiProxy OS V1.0+

*some models may require CLI configuration

Documentation:

Download the Fortinet FortiSandbox Series Datasheet (PDF).
