Fortinet FortiGate 500D
Accelerated security for mid-enterprise and branch office

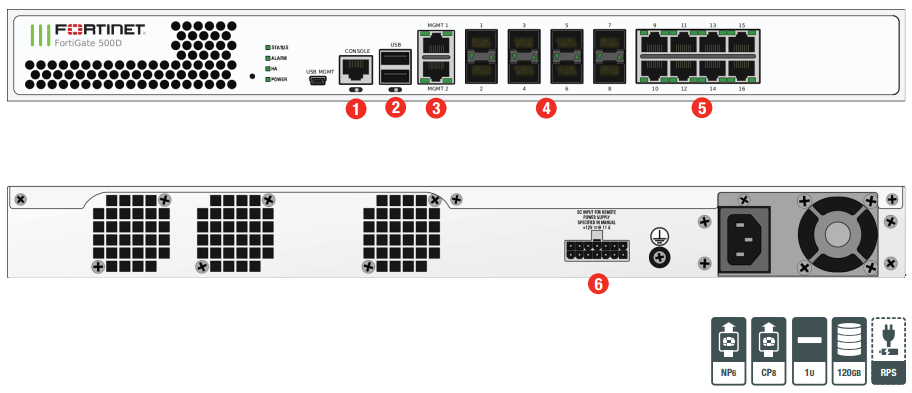

Hardware:

Interfaces

1. Console Port (RJ45)
2. 2x USB Ports
3. 2x GE RJ45 Management Ports
4. 4x GE RJ45 Ports
5. 8x GE SFP Slots
6. FRPS Connector

Powered by SPU

• Custom SPU processors deliver the power you need to detect malicious content at multi-Gigabit speeds
• Other security technologies cannot protect against today's wide range of content- and connection-based threats because they rely on general-purpose CPUs, causing a dangerous performance gap
• SPU processors provide the performance needed to block emerging threats, meet rigorous third-party certifications, and ensure that your network security solution does not become a network bottleneck

Network Processor

Fortinet's new, breakthrough SPU NP6 network processor works inline with FortiOS functions delivering:

• Superior firewall performance for IPv4/IPv6, SCTP and multicast traffic with ultra-low latency down to 2 microseconds
• VPN, CAPWAP and IP tunnel acceleration
• Anomaly-based intrusion prevention, checksum offload and packet defragmentation
• Traffic shaping and priority queuing

Content Processor

The SPU CP8 content processor works outside of the direct flow of traffic, providing high-speed cryptography and content inspection services including:

• Signature-based content inspection acceleration
• Encryption and decryption offloading

Deployment:

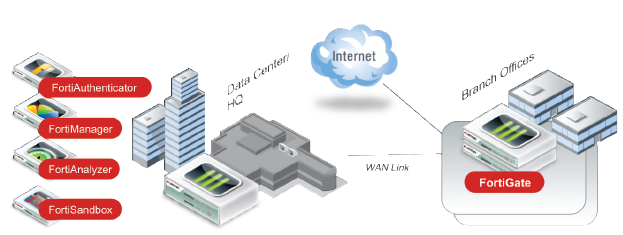

FortiGate deployed as branch office firewall

Branch Office Firewall

Today's branch office security gateway is no longer just a basic firewall and site-to-site VPN gateway. With the prevalent adoption of cloud based applications - both public and private, there are more associated requirements for both access availability and security. A security gateway will need robust network and high availability capabilities that include intelligent WAN link forwarding and flexible network deployment options. From the security perspective, a branch office firewall should provide abilities to identify users, locations, devices and applications; thereby control access with finer granularity and visibility. With Fortinet solution for enterprises, branch offices can enjoy significant protection with centralized facilities such as File Analysis using the FortiSandbox and FortiAuthenticator for user access management.

Mid Enterprise Edge Firewall

Fortinet's Midrange firewalls are perfect for growing mid enterprises with their agile and high performance network security capabilities. The FortiGate 300D and 500D not only deliver protection exceeding expectations, they are suitable for consolidating other security components. This allows organizations to significantly reduce TCOs and simplifies the network. Unlike other NGFWs (Next Generation Firewalls), the FortiGates are powered by FortiASICs which provide security without compromises performance. They run on the World's most advanced Security operating systems that meet each organizations unique requirements. Advanced features such as integrated endpoint control and token server helps organizations to rapidly deploy enhanced security to their mobile workforce while device based policies aid to implement BYOD securely.

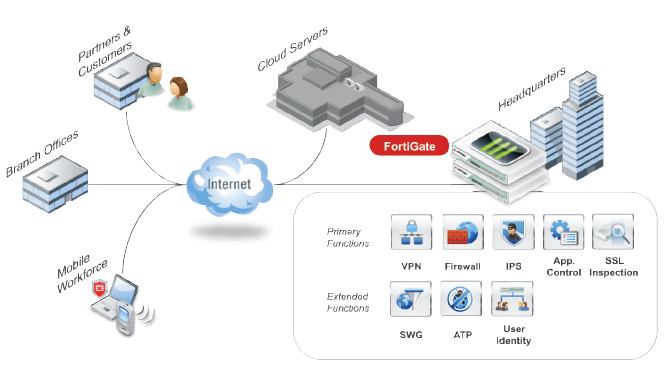

FortiGate deployed as mid enterprise edge firewall

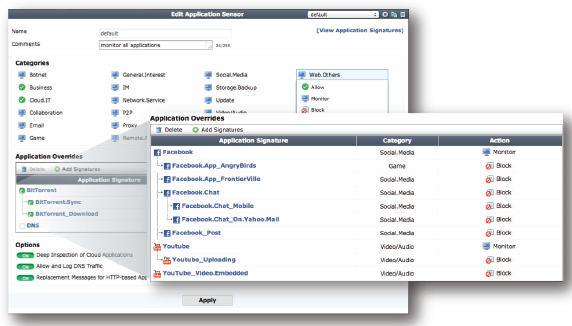

Powerful application control with granular settings

Proven with Industry Validation

3rd party industry certifications, as well as real-world effectiveness and performance tests assure quality and providing you best-of-breed protection.

Ease of Use

FortiOS lowers operational costs and reduces IT staff workload. Single pane of glass management and centralized analysis ensure consistent policy creation and enforcement while minimizing deployment and configuration challenges.

In-depth Visibility & Reporting

Through FortiView, a collection of flexible widget-based views with drill-down capabilities, FortiOS allows administrators to quickly visualize and understand recent network activities and threat situations.

Detailed logs offers deep insights to sessions that passed through the FortiGate while comprehensive reports helps organizations to trend network usage accurately.

Powerful Policy Management

Two types of policy management views - global and section view - are available to suit your preferences. Policy objects can be easily edited, duplicated or moved from the policy table. Robust management features include policy object search, tagging, sorting and filtering.

With FortiManager integration, you have the ability to set up sophisticated policy implementation and provisioning workflows to meet compliance or operational requirements. The FortiManager also offers logging and reporting module that simplified and reduced TCO.

Identity Centric Enforcement

FortiOS supports both local and remote authentication services such as LDAP, Radius and TACACS+ to identify users and apply appropriate access policies and security profiles accordingly. It can simplify identity based implementations and provide a seamless user authorization experience with single sign-on capabilities. FortiOS has strong PKI and certificatebased authentication services while also integrating an internal two factor authentication server for additional security.

To tackle security for today's prevalent use of personal devices, FortiOS offers state-of the art device identification capabilities that empower organization to set up more intelligent security policies.

Granular Application Control

Advanced application control with ability to control discrete functions lets you define and enforce policies for thousands of applications running across networks regardless of port or the protocol used for communication.

Software:

FortiOS

Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

• A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
• Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
• Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
• Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
• Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
• Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.

Services:

FortiGuard Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:

• Real-time Updates - 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
• Security Research - FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
• Validated Security Intelligence - Based on FortiGuard intelligence, Fortinet's network security platform is tested and validated by the world's leading third-party testing labs and customers globally.

FortiCare Support Services

Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:

• Enhanced Support - For customers who need support during local business hours only.
• Comprehensive Support - For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
• Advanced Services - For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
• Professional Services - For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.

Enterprise Bundle

FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.

Fortinet Support Offerings

	8x5 Enhanced Support	24x7 Comprehensive Support	PRMA Next Day Delivery	PRMA 4 Hour On-Site Parts Delivery	PRMA 4 Hour On-Site Engineer
Web Access
On-line documentation	24x7	24x7	24x7	24x7	24x7
Product regisration	24x7	24x7	24x7	24x7	24x7
Technical Support
Phone	8x5	24x7	24x7	24x7	24x7
Web	8x5	24x7	24x7	24x7	24x7
Chat	8x5	24x7	24x7	24x7	24x7
Software Support
Firmware downloads	24x7	24x7	24x7	24x7	24x7
Hardware Support
	Return and Replace Hardware Replacement Site address needs to be confirmed before purchase Customer returns faulty device to Fortinet TAC based in Sydney Signed acknowledgement of replacement hardware delivery	NBD Advanced Hardware Replacement NBD replacement is only available for NSW, QLD, VIC & ACT For WA, SA, NT & TAS, delivery is within 3-5 business days Site address needs to be confirmed before purchase RMA needs to be verified by the TAC by 2pm Sydney time Signed acknowledgement of replacement hardware delivery Customer returns faulty device to Fortinet TAC based in Sydney within 30 days after receipt of the replacement unit	Premium NBD Replacement NBD is available for all states in Australia Site address needs to be confirmed before purchase RMA needs to be verified by the TAC by 3pm Sydney time for SLAs to be guaranteed Customer returns faulty device to Fortinet TAC based in Sydney within 30 days after receipt of the replacement unit	Premium 4H Same Day Replacement Parts only, delivered 24x7x4 Hardware is delivered within 4 hours of RMA verification by the TAC Site address needs to be confirmed before purchase Signed acknowledgement of replacement hardware delivery Customer returns faulty device to Fortinet TAC based in Sydney within 30 days after receipt of the replacement unit	Premium 4H Same Day Replacement with Engineer RMA parts delivered by an installation engineer 24x7 Site address needs to be confirmed before purchase Hardware is delivered within 4 hours of RMA verification by the TAC Engineer will exchange defective hardware with replacement part Engineer will restore firmware and IP address Engineer will not restore custom configuration file or customer data Engineer will remain on-site until customer is able to access the unit to restore configuration files Mutual agreement of service delivery completion Engineer will leave the site with the defective part
Replacement turnaround	Shipped within 3 Business Days of receipt of the defective hardware	NBD for supported states, 3-5 business days for other states	NBD	4 Hour Same Day	4 Hour Same Day

Specifications:

FortiGate 500D Specifications
Hardware Specifications
GE RJ45 Interfaces	8
GE SFP Slots	8
GE RJ45 Management Ports	2
USB (Client / Server)	1 / 2
RJ45 Console Port	1
Local Storage	120 GB SSD
Included Transceivers	2x SFP (SX 1 GE)
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	16 / 16 / 16 Gbps
Firewall Latency (64 byte UDP packets)	3 μs
Firewall Throughput (Packets Per Second)	24 Mpps
Concurrent Sessions (TCP)	6 Million
New Sessions/Second (TCP)	250,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte packets)	14 Gbps
Gateway-to-Gateway IPsecVPN Tunnels	2,000
Client-to-Gateway IPsecVPN Tunnels	10,000
SSL-VPN Throughput	400 Mbps
Concurrent SSL-VPN Users(Recommended Maximum)	500
IPS Throughput (HTTP / Enterprise Mix) 1	5.7 / 3.5 Gbps
SSL Inspection Throughput 2	3 Gbps
Application Control Throughput 3	4 Gbps
NGFW Throughput 4	2.5 Gbps
Threat Protection Throughput 5	2 Gbps
CAPWAP Throughput 6	10 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode)	512 / 256
Maximum Number ofFortiTokens	1,000
Maximum Number ofRegistered FortiClients	2,000
High Availability Configurations	Active/Active, Active/Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	1.73 x 17 x 12.68
Height x Width x Length (mm)	44 x 432 x 322
Weight	10.8 lbs (4.9 kg)
Form Factor	1 RU
Power Consumption (Average / Maximum)	113 W / 202 W
Power Source	100-240V AC, 60-50Hz
Current (Maximum)	110V/4A, 220V/2A
Heat Dissipation	690 BTU/h
Environment and Certifications
Operating Temperature	32-104°F (0-40°C)
Storage Temperature	-31-158°F (-35-70°C)
Humidity	20-90% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)
Regulatory Compliance	FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.

Documentation:

Download the Fortinet FortiGate 500D Datasheet (PDF).
