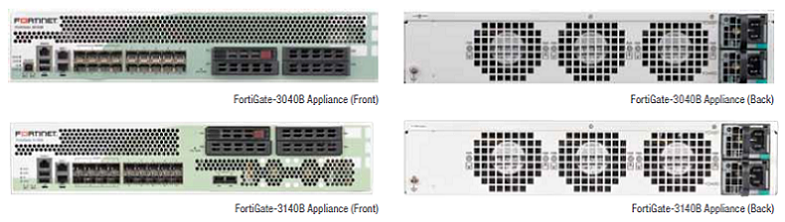

Fortinet FortiGate-3040B-USG
10-GbE Consolidated Security Appliances

Features:

Firewall

Fortinet firewall technology delivers complete content and network protection by combining stateful inspection with a comprehensive suite of powerful security features. Application control, antivirus, IPS, Web filtering and VPN, along with advanced features such as an extreme threat database, vulnerability management, flowbased inspection and active profiling work in concert to identify and mitigate the latest complex security threats. The securityhardened FortiOS operating system works together with purposebuilt FortiASIC processors to accelerate inspection throughput and identification of malware.

Antivirus / Antispyware

Antivirus content inspection technology protects against viruses, spyware, worms, and other forms of malware which can infect network infrastructure and endpoint devices. By intercepting and inspecting application-based traffic and content, antivirus protection ensures that malicious threats hidden within legitimate application content are identified and removed from data streams before they can cause damage. FortiGuard subscription services ensure that FortiGate devices are updated with the latest malware signatures for high levels of detection and mitigation.

Intrusion Prevention

IPS technology protects against current and emerging networklevel threats. In addition to signature-based threat detection, IPS performs anomaly-based detection which alerts users to any traffic that matches attack behavior profiles. The Fortinet threat research team analyzes suspicious behavior, identifies and classifies emerging threats, and generate new signatures to include with FortiGuard Service updates.

VPN

Fortinet VPN technology provides secure communications between multiple networks and hosts, using SSL and IPsec VPN technologies. Both services leverage our custom FortiASIC processors to provide acceleration in the encryption and decryption steps. The FortiGate VPN service enforces complete content inspection and multithreat protections including antivirus, intrusion prevention and Web filtering. Traffic optimization provides prioritization for critical communications traversing VPN tunnels.

WAN Optimization

Wide Area Network (WAN) optimization accelerates applications over geographically dispersed networks, while ensuring multithreat inspection of all network traffic. WAN optimization eliminates unnecessary and malicious traffic, optimizes legitimate traffic, and reduces the amount of bandwidth required to transmit data between applications and servers. Improved application performance and delivery of network services reduces bandwidth and infrastructure requirements, along with associated expenditures.

Endpoint NAC

Endpoint NAC can enforce the use of FortiClient Endpoint Security for users connecting to corporate networks. Endpoint NAC verifies FortiClient Endpoint Security installation, firewall operation and upto- date antivirus signatures before allowing network access. Noncompliant endpoints, such as endpoints running applications that violate security policies can be quarantined or sent to remediation.

Web Filtering

Web filtering protects endpoints, networks and sensitive information against Web-based threats by preventing users from accessing known phishing sites and sources of malware. In addition, administrators can enforce policies based on Website categories to easily prevent users from accessing inappropriate content and clogging networks with unwanted traffic.

SSL-Encrypted Traffic Inspection

SSL-encrypted traffic inspection protects endpoint clients and Web and application servers from hidden threats. SSL Inspection intercepts encrypted traffic and inspects it for threats prior to routing it to its final destination. It can be applied to client-oriented SSL traffic, such as users connecting to cloud-based CRM site, and to inbound Web and application server traffic. SSL inspection enables you to enforce appropriate use policies on encrypted Web content and to protect servers from threats which may be hidden inside encrypted traffic flows.

Data Loss Prevention

DLP uses a sophisticated pattern-matching engine to identify and prevent the transfer of sensitive information outside of your network perimeter, even when applications encrypt their communications. In addition to protecting your organization’s critical data, Fortinet DLP provides audit trails to aid in policy compliance. You can select from a wide range of configurable actions to log, block, and archive data, and quarantine or ban users.

Logging, Reporting & Monitoring

FortiGate consolidated security appliances provide extensive logging capabilities for traffic, system, and network protection functions. They also allow you to assemble drill-down and graphical reports from detailed log information. Reports can provide historical and current analysis of network activity to aid with identification of security issues and to prevent network misuse and abuse.

High Availability

High Availability (HA) configurations enhance reliability and increase performance by clustering multiple FortiGate appliances into a single entity. FortiGate High Availability supports Active-Active and Active-Passive options to provide maximum flexibility for utilizing each member within the HA cluster. The HA feature is included as part of the FortiOS operation system and is available with most FortiGate appliances.

Virtual Domains

Virtual Domains (VDOMs) enable a single FortiGate system to function as multiple independent virtual FortiGate systems. Each VDOM contains its own virtual interfaces, security profiles, routing table, administration, and many other features. FortiGate VDOMs reduce the complexity of securing disparate networks by virtualizing security resources on the FortiGate platform, greatly reducing the power and footprint required as compared to multiple point products. Ideal for large enterprise and managed service providers.

Wireless Controller

All FortiGate and FortiWiFi™ consolidated security platforms have an integrated wireless controller, enabling centralized management of FortiAP™ secure access points and wireless LANs. Unauthorized wireless traffic is blocked, while allowed traffic is subject to identityaware firewall policies and multi-threat security inspection. From a single console you can control network access, update security policies, and enable automatic identification and suppression of rogue access points.

Application Control

Application control enables you to define and enforce policies for thousands of applications running across networks regardless of port or the protocol used for communication. The explosion of new Internet-based and Web 2.0 applications bombarding networks today make application control essential, as most application traffic looks like normal Web traffic to traditional firewalls. Fortinet application control provides granular control of applications along with traffic shaping capabilities and flow-based inspection options.

Setup / Configuration Options

Fortinet provides administrators with a variety of methods and wizards for configuring FortiGate appliances during deployment. From the easy-to-use Web-based interface to the advanced capabilities of the command-line interface, FortiGate systems offer the flexibility and simplicity you need.

Specifications:

Note: All performance values are “up to” and vary depending on system configuration. Antivirus performance is measured using 44 Kbyte HTTP files. IPS performance is measured using 1 Mbyte HTTP files.

FortiGate-3040B/3140B consolidated security appliances also include:

• Multiple deployment modes (Transparent/Routing) for ease of installation
• Integrated Switch Fabric for very low latency
• Advanced Layer-2/3 routing for data center traffic optimization
• High Availability (Active/Active, Active/ Passive, Clustering) for maximum uptime
• Virtual Domains (VDOMs) for multi- tenant environments
• Traffic Shaping and Prioritization ensure performance of critical traffic
• WAN Optimization and Web Caching for improved performance and lower costs
• Local event logging and reporting for compliance and auditing

MANAGEMENT OPTIONS

• Local Web-Based Management Interface
• Command Line Management Interface (CLI)
• Centralized management and analysis by FortiManager and FortiAnalyzer

Documentation:

Download the Fortinet FortiGate 3040B / 3140B Series Datasheet (.PDF)
